Vehicle Noise Measurement DB1000 and DB3500 — NAPRO Eletrônica Industrial

Vehicle noise measurement in compliance with Brazilian environmental legislation

The DB1000USB is the NAPRO® system developed for measuring sound emissions from motor vehicles in compliance with CONAMA 418 and IBAMA 6 resolutions. The system integrates a precision sound level meter with Windows measurement software that controls the test sequence, verifies validity conditions and generates the report automatically.

Communication between the sound level meter and the computer is via IM/USB interface, eliminating the need for serial converters or complex drivers. The system can be expanded with an RPM meter — digital (PRO 9200) or via OBD protocol — to ensure that noise measurement is performed at the correct engine speed as specified by the standard.

Compliance with CONAMA 418 and IBAMA 6
Windows software with test sequence control
IM/USB communication interface
Automatic verification of validity conditions
Automatic generation of test report
Optional RPM meter — digital or OBD

System components

DB1000USB Sound Level Meter

Precision sound pressure level meter with USB interface for direct communication with the test software.

Windows Software

Controls the measurement sequence in accordance with CONAMA 418 and IBAMA 6, validates test conditions and automatically generates the report.

RPM Meter (optional)

PRO 9200 (digital) or OBD protocol meter — ensures measurement is performed at the correct engine speed specified by the standard.

Specifications and compliance

Model DB1000USB

Test type Static — stationary vehicle

Standards covered CONAMA 418 and IBAMA 6

Platform Windows

Communication interface IM/USB

RPM meter (opt.) PRO 9200 or OBD

Report Generated automatically

Applications

Idling noise

Assessment of sound emissions from a stationary vehicle with the engine at idle or elevated speed, in compliance with CONAMA 418.

Vehicle inspection

Noise measurement in technical inspection lines, integrating the result into the vehicle inspection report.

Environmental enforcement

Support for environmental and traffic agencies in enforcing noise regulations for vehicles in compliance with current legislation.

DB3500 NAPRO system — dynamic noise measurement under acceleration

Noise measurement under acceleration with laser sensors and radio RPM

The DB3500 is the NAPRO® system for measuring noise emitted by motor vehicles under acceleration, designed to comply with ABNT NBR 15145 and ECE Regulation 51. It uses laser barriers to measure vehicle speed at two or three points on the track, and an RPM meter with radio frequency transmission — no cables attached to the vehicle.

Accepts up to two sound level meters simultaneously — the second via wireless communication — and operates normally in direct sunlight. Allows RBC traceable calibration and certification.

Compliance with ABNT NBR 15145 and ECE Regulation 51
Vehicle speed measured at 2 or 3 points via laser barrier
Wireless RPM meter — radio frequency transmission
Up to 2 sound level meters — 2nd via wireless
Speed uncertainty: <0.5 km/h
RPM uncertainty: <2%
Sun-exposed operation — outdoor field use
RBC certification available

System in the field

DB3500 — noise test under acceleration with motorcycle

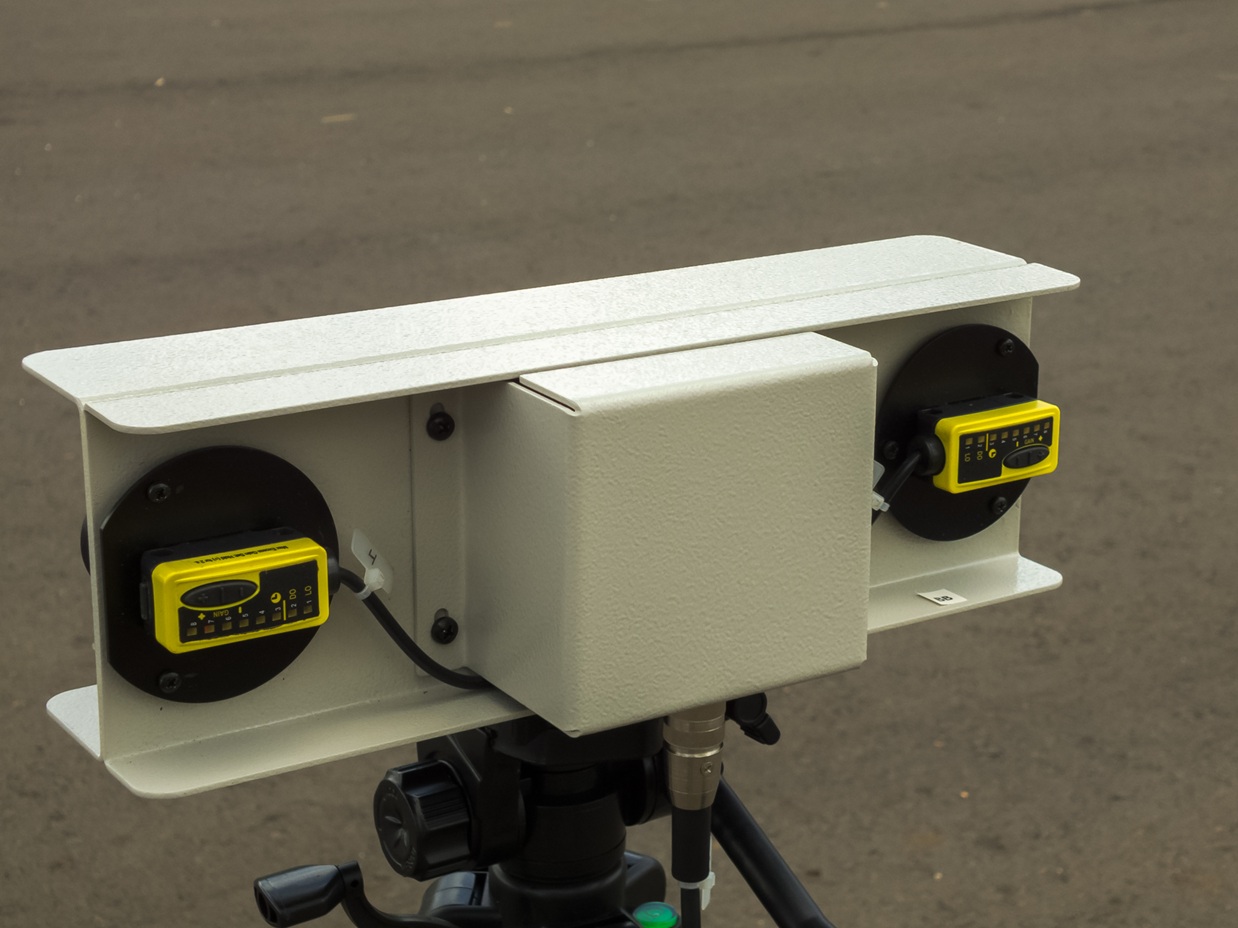

DB3500 — head unit with laser sensors for speed measurement

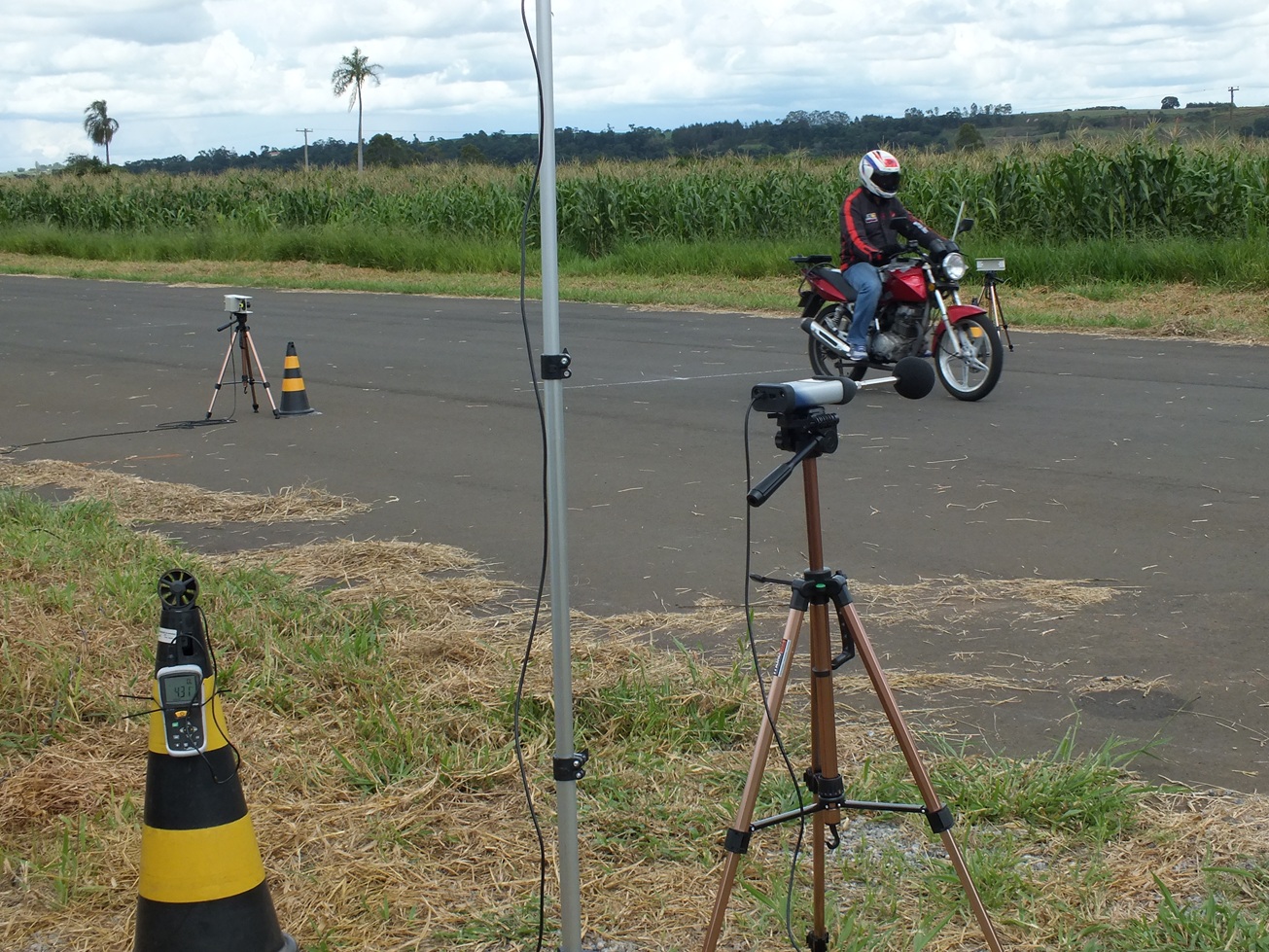

DB3500 — laser sensor mounted on tripod on the track

System components

Laser sensors — 2 or 3 barriers for measuring entry, exit and track centre speed
RPM meter — with radio frequency transmission, no cables on the vehicle
Signal interface — processing and conditioning of speed and RPM data
Windows software — tests per NBR (acceleration) and constant speed, CSV export
Class 1 sound level meter — per IEC 61672-1:2002 (check compatible NAPRO models)

Measurement site requirements

Open space with a 50 m obstacle-free radius around the MNS
Central area of 10 m radius in concrete, asphalt or similar
Wind below 5 m/s and temperature between 10 and 35 °C
No rain or splashing

Measurement software

The software included with the DB3500 manages the entire test: collects and synchronises speed data (laser), RPM (radio) and sound pressure level (sound level meter), applies the standard's validity criteria and automatically generates results. Data can be exported in CSV format for later analysis.

Test modes

Noise measurement under acceleration — per ABNT NBR 15145
Noise measurement at constant speed
Results export in CSV format

Optional items not included

Class 1 sound level meter (IEC 61672-1:2002)
Class 1 sound calibrator
Computer / Notebook
Meteorological meters (temperature, wind, humidity, pressure)

Technical Specifications

Model DB3500

Test type Dynamic — vehicle under acceleration

Standards covered ABNT NBR 15145 and ECE R51

Maximum vehicle speed 70 km/h

Minimum vehicle speed 20 km/h

Speed uncertainty < 0.5 km/h

RPM uncertainty < 2%

Maximum laser distance 18 m

Speed measurement points 2 or 3 laser barriers

Simultaneous sound level meters Up to 2 (2nd via wireless)

Sound level meter class Class 1 — IEC 61672-1:2002

Wireless RPM Radio frequency

Power supply 12–14 VDC or 90–240 VAC

Computer connection USB 2.0

Data export CSV

Certification RBC available

Applications

Vehicle homologation

Acceleration noise tests for certification and homologation of light vehicles, heavy vehicles and motorcycles per NBR 15145 and ECE R51.

Automakers and proving grounds

Assessment of sound emissions during the development of new models, under real track and acceleration conditions.

Research institutes

Fleet sound emission surveys, acoustic impact studies and validation of noise reduction systems.

Environmental agencies

Enforcement of sound emissions under traffic conditions, with traceable results accepted under RBC certification.
